• 軌道式電源- 1000瓦,單輸出, 備援功能

軌道式電源- 1000瓦,單輸出, 備援功能

輸入電壓:115/230AC±15% selectable
額定輸出電壓: +42V
額定輸出功率: 1000W

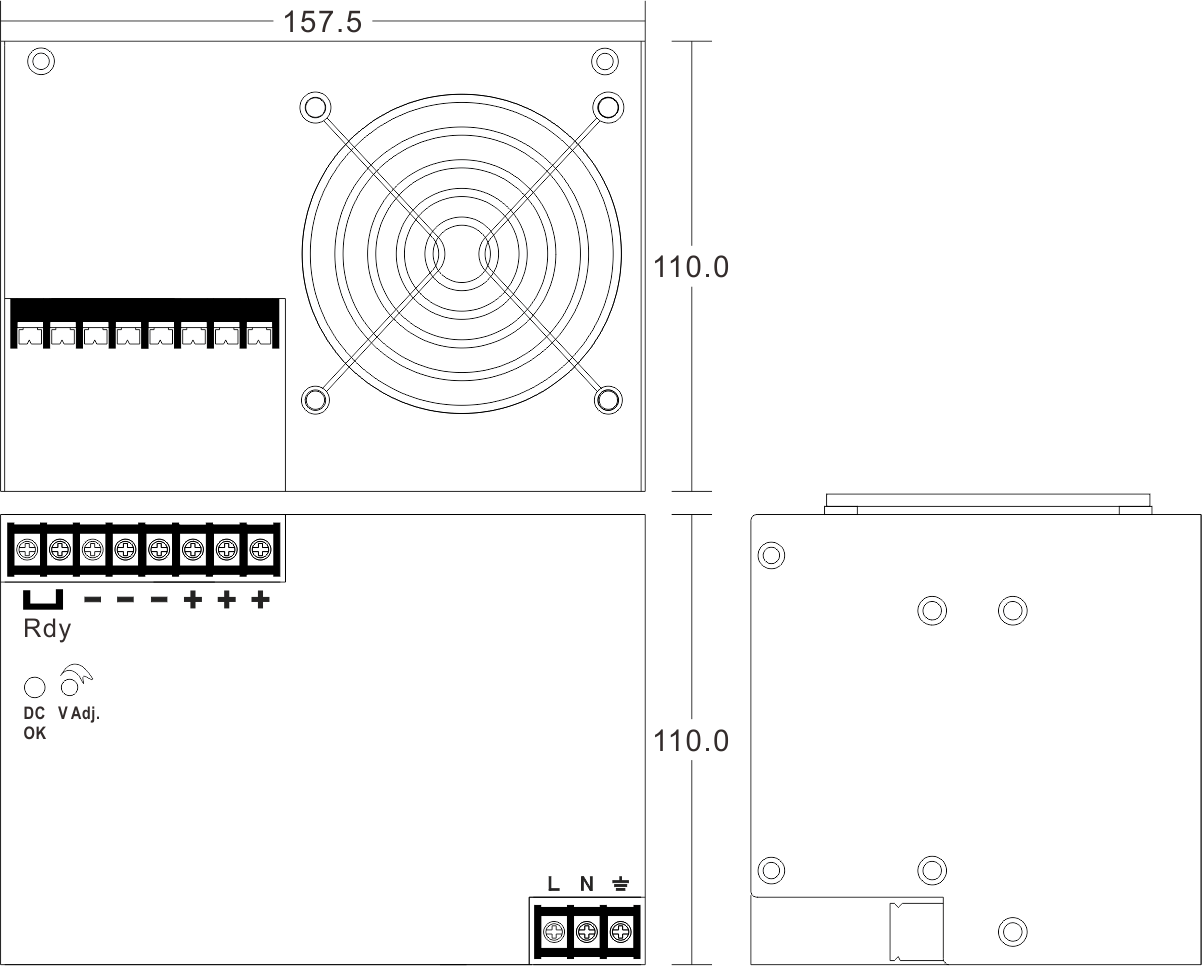

產品尺寸:110(D)x157.5(W)x110(H) mm
型號 : AD11K0-42SR


本產品透過堅固耐用及高功率密度的設計, 能滿足節省空間以及在工業上之應用。
所有型號內建乾接點Alarm訊號及 o-ring diode 以建置備援應用並裝置過電壓保護、
過載保護、短路保護,等保護措施。周全的設計,可安裝在T.35軌道上及使用附加之固定片
裝載在牆面上。所有型號皆符合RoHS規範、CE標誌、取得UL508認證。


DATASHEET:




INPUT
Input voltage:115/230VAC Selectable
Input frequency:47~63Hz
Inrush current:22A/115VAC
(Cold start) 44A/230VAC

OUTPUT
Hold-up time (Full load@230VAC):20mS Min.
Over voltage protection:Autorecovery
Overload protection:Power limited
Short circuit protection:Autorecovery



Model

Output Voltage Adjustment

Loading

Ripple Noise

Eff.

Over Voltage Protection

MOQ

Min.

Rated

Max.

AD11K0-42SR

+42VDC±10%

0A

24A

24A

350mVp-p

85%

27~30VDC

Contact us


Features

Innovative design of industrial-grade power supply rail

Natural convection air cooling

High voltage protection

Current overload protection

Short circuit protection

Din rail / retainer lock with fixed protection

Selective warning signals (dry contact) / redundancy

High power density

High reliability

Small size, high efficiency, low cost

Comply with RoHS / UL / CE Standard

3-year quality warranty



Operating Environment

Operating temperature: -40 to 50 degrees

Operating humidity: non-condensing 5% to 95% relative humidity





Application
Designed for industrial applications. With the rugged and thoughtful fixed design, you can mount the
Power Supply on TS35 DIN rail, wall, or any surface. D
esigning for the size and wiring distribution of
the power chassis, it saves a lot of space and be more convenient to make wiring distribution.
This product is suitable for automatic control systems, factory automation, industrial control,
instrumentation equipment, electromagnetic actuators and other DC motor load and according to the
latest requirements and standards designed.
